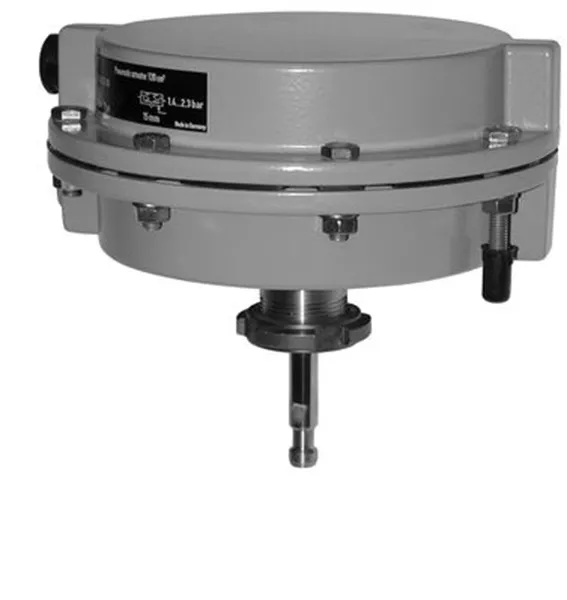

3271 Pneumatic actuator

3271

Pneumatic actuator

USAGE

• On/off service
• Throttling service
• Pressure swing adsorption (PSA)

ACTUATOR MOTION
Linear

RATED TRAVEL
7.5 mm to 250 mm

SUPPLY
Pneumatic

VERSION
Standard

FAIL-SAFE ACTION
Reversible

Special features

• Single-acting linear actuator with rolling diaphragm and internal springs
• Diaphragm areas from 120 to 2x2800 cm²
• Low overall height
• Powerful thrust at high stroking speed
• Low friction
• Various bench ranges by varying the number of springs or their compression
• No special tools required to change the bench range or reverse the direction of action (also version with handwheel)

Accessories

• Accessories

Options

• Version with side-mounted handwheel
• Travel stop
