Salami Spa

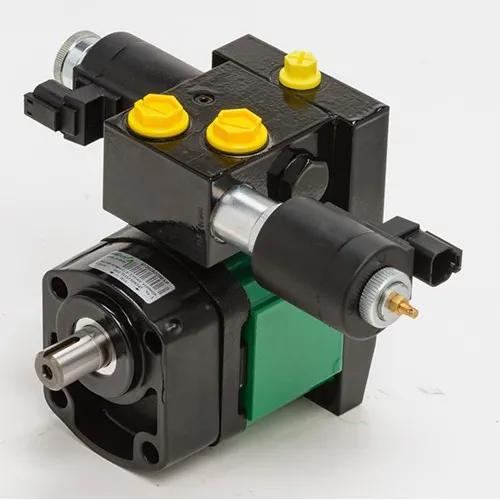

Gear Motors Type 4.5

Model Type 4.5

Gear motors made with aluminium alloy body and cast iron flanges and rear covers.

• Gear motors made with aluminium alloy body, cast iron flanges and covers.
• Displacements from 0.27 to 1.58 cu.in/rev.
• High volumetric efficiency achieved by floating bushings and axial compensation.
• Integral gear with 12 teeth.
• Double shaft seal.
• Available with flanges, shafts and ports for the main European, German and American standards.
• Available supports with bearing.
• Wide range of rear covers with built-in valves.

Air compressor drive release:

• electric or manual motor speed control;
• electric venting valve.

Fan drive release:

• proportional electric valve to control the speed of the motor;
• 4/2 ON-OFF electric valve to reverse the rotation.

Reversible release:

• available also with internal drain.
