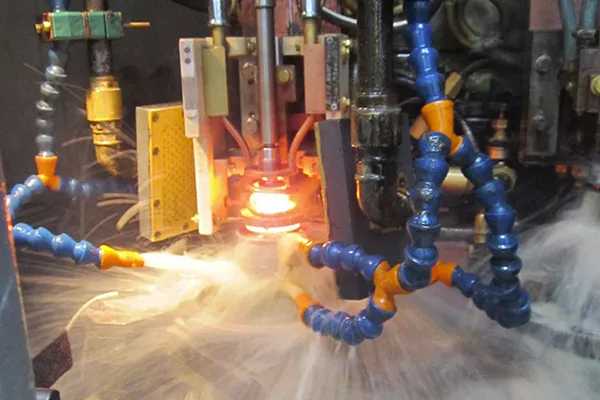

Transmission Joints – 5 position index table

Transmission Joints – 5 position index table

More than 300 machines manufactured since 1979

5 POSITION INDEX TABLE

The extensive metallurgical know-how allows SAET EMMEDI to push the hardening and tempering processes to their limits: very short heating time, minimal deformation, precise control of structure. Machine loading configurations range from linear transfer system to rotary tables up to stand alone and robotic cells.

Power

1 x 300 kW (H) - 1 x 50 kW (T)

Frequency

5-30 kHz (H) - 5-30 kHz (T)

Throughput

16 sec/pc

Dimension Range

L: 100-250 mm / OD: 60-120 mm

Handling

automatic conveyors
