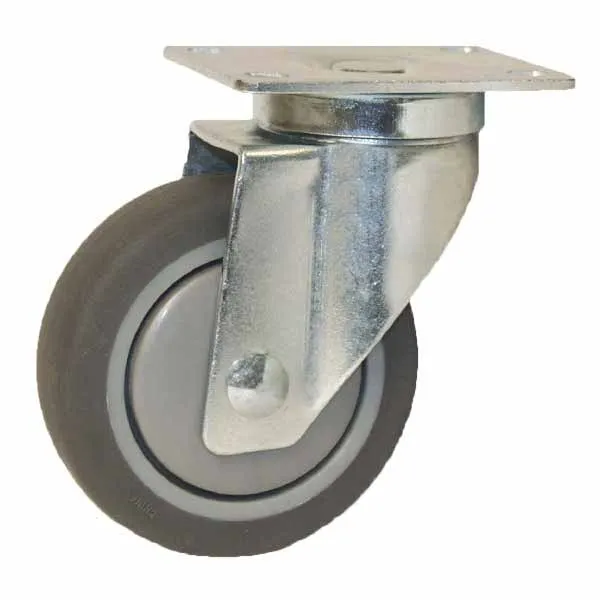

VersaTrac 27® Series Casters
The VersaTrac 27® Series Casters provide solutions to a wide range of institutional caster and industrial caster wheel applications. This light- to medium-duty caster is available in multiple styles and sizes. It is offered in numerous top plates and stem choices and is available with nine standard wheel combinations. The VersaTrac 27® Series Caster is a durable and reliable caster featuring extra thick material in the top plate, yoke and raceways. The VersaTrac 27® Caster is heat treated for extended service life and comes standard with a metal dust shield. This light- to medium-duty caster series provides the ultimate in value at very competitive prices.
FEATURES
Swivel Section
Two complete 2.75 mm shielded heat treated raceways, which prevents brinelling, provides improved swivel action and extends service life.
Kingpin
1/2” diameter kingpin for increased swivel strength
Capacity
Up to 300 lbs.
Axle
3/8” diameter with lock nut
Finish
Zinc plated to protect against corrosion
Wheels
A wide variety of 3” through 5” diameter available with either roller, ball, celcon, oilite or plain bearings
Mounting Plate Size
Swivel: 3.5 mm x 2-5/8” x 3-3/4”
Rigid: 2.75 mm x 2-5/8” x 3-3/4”
Bolt Hole Spacing
1-3/4” x 2-7/8”
Mounting Bolt Diameter
5/16”
APPLICATIONS
General industry
Bins and cases
Medical equipment
Racks and tables
Laboratory
Commercial appliances
Residential
Retail fixtures
Industrial caster and manufacturing applications
Display stands
Food service and processing equipment
Business machines and equipment
Carts and dollies
