OxyTran 100

OxyTran 100

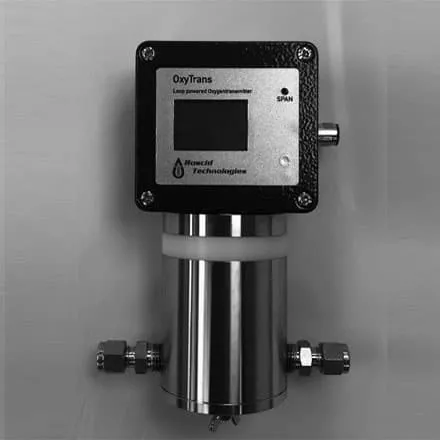

OxyTran 100 Oxygen Transmitter

4 – 20 mA Loop Powered two wire Oxygen Transmitter.

Two Wire Process Oxygen Transmitter

The Model OxyTrans is simple, accurate and economic measurement of Oxygen at trace and % levels. A simple Display and a one-point calibration (on air) allow easy and fast start-up of the instrument. optional 1/2 G Ex ia IIC T4 (ATEX)

One User specific measuring range

The unit offers a single range: 0 – 100% of oxygen.

Sensor

The OxyTrans uses a special fuel cell to measure the oxygen concentration. The sensor meets the industrial requirements for accuracy, sensitivity, easy to use and operating life.

Calibration

The calibration of the instrument can be performed at room oxygen (20.9%) or done with a % traceable oxygen measurements in gas, should be done with a calibration gas.

Features

• Compact
• Inexpensive
• Sensor with long operating life
• IP65 enclosure
• Reverse voltage protection and temperature compensation

Flow-through measuring cell in Stainless Steel

• The measuring cell is modular and is made of stainless steel
• A defective measuring cell can be repaired by replacing the defective part only, rather than the complete unit
