Rorze Robotech Inc

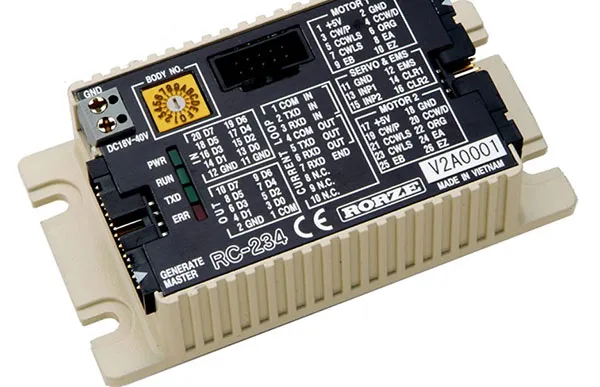

Control Devic- Controller RC-234

Product Features

RC-234 is a motion controller that enables the control using the pulse string of the stepping motor and servo motor. One RC-234 can control 2 motors at the same time and can perform arcuate/linear interpolating control on the 2-axis X-Y plane.

• CE Marking compliance.
• Smooth operation without shock or dumping is available using the S-curve acceleration/deceleration control.
• Position compensation and motor stall detection are available by attaching the encoder.
• Stand-alone operation and PLC control are available using the user program.
• Pulse output of max. 1 Mpps pulses is available in use for the high division micro-step driver.
• Combination of up to 20 controllers (RC-208A and RC-234) is available as the Host controller of one PC.
