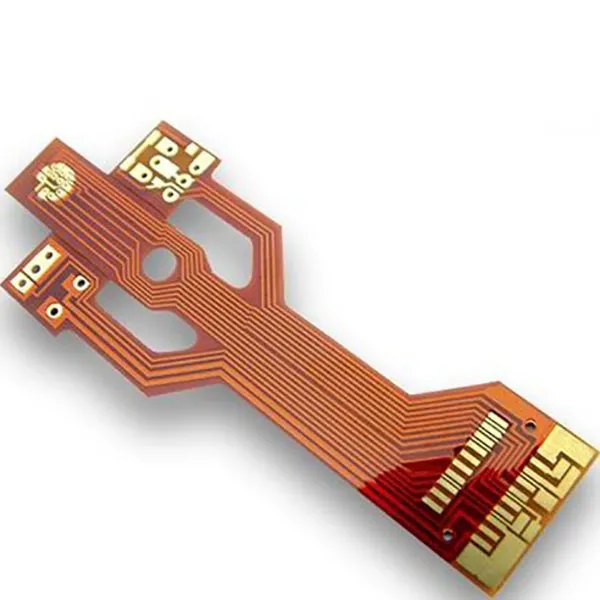

Flexible PCB

Flexible PCB

Like rigid PCBs, flexible PCBs come in single, double or multilayer formats. As they need to be printed on a flexible material, they tend to cost more for fabrication. Ronak circuits Pvt. Ltd. makes Flexible PCBs with Immersion Silver, Immersion gold and OSP.

Manufacturing capabilities include:

• Adhesive less construction for thinner and more flexible circuits.
• Additive processing for higher density circuits. Trace and space capabilities down to .0015" in production.
• Micro via sizes down to .001" diameter for high density, 2-layer flex circuits.
• Selective plating of gold and tin lead enables multiple attachment methods on the same flexible circuit.
• Selective polyimide removal permits cantilevered and windowed leads.
• Alternate circuit layer materials such as beryllium copper, stainless steel and cupronickel can be used for optimum performance in unique applications.
• SMT and thru hole assembly services. Package sizes down to 0201 & .4mm pitch
