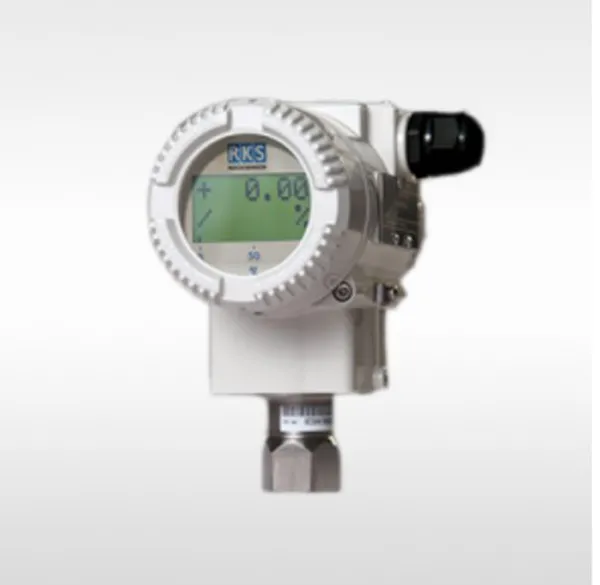

RP1002 Gauge Pressure Transmitter

The Gauge Pressure Transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure.

Key Features

• Range Limit : (-)1 ~ 600 bar.
• Accuracy : ±0.035%, ±0.06%, ±0.1%.
• Filling Fluid : Silicon Oil, Flourine Oil.
• Diaphragm : SS316L, Hastelloy C, Gold plated on 316L, FEP plated on 316L, Tantalum.

Specifications:

• Stability: ±0.15%URL/ 10 years.
• Surge Protection : Available.
• Reverse Polarity Protection : Available.
• Housing Protection Level: IP67.
• Housing: Aluminum with epoxy resin coat/Stainless steel.
• Indicator : 5 ½ Digit LCD backlit display.
• Communication Protocol : HART®/PROFIBUS-PA/FF.
• Configuration : Through in-built Push-button/ Handheld HART Communicator.
• Certifications : ATEX,IECEx CE, SIL Certified.

Key Applications :

• Oil and Gas sector
• Chemicals
• Cement
• Power
• Metal
• Water
