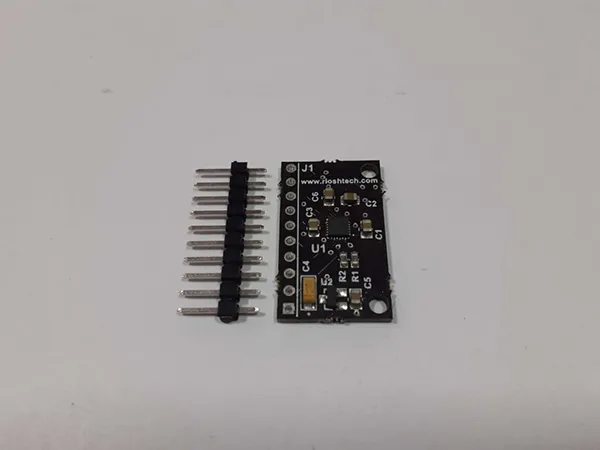

Pepper-IMU-Breakout-MPU-9250-Board

Features

• Digital-output X-, Y-, and Z-axis angular rate sensors (gyroscops) with a user-programmable full-scale range of ±250, ±500, ±1,000 and ±2,000°/sec and integrated 16-bit ADCs
• Digital-output triple-axs accelerometer with a programmable full-scale range of ±2g, ±4g, ±8g and ±16g and integrated 16-bit ADCs
• Gyroscope operating current: 3.2mA
• Accelerometer normal operating current: 450µA
• Magnetometer normal operating current: 280µA at 8Hz repetition rate

Specifications

• Embedded:No
• Interface:I²C, SPI
• Sensing Range:±2g, 4g, 8g, 16g, ±250°/sec, ±500°/sec, ±1000°/sec, ±2000°/sec, ±4800µT
• Sensor Type:Accelerometer, Gyroscope, Magnetometer, 3 Axis
• Utilized IC / Part:MPU-9250
