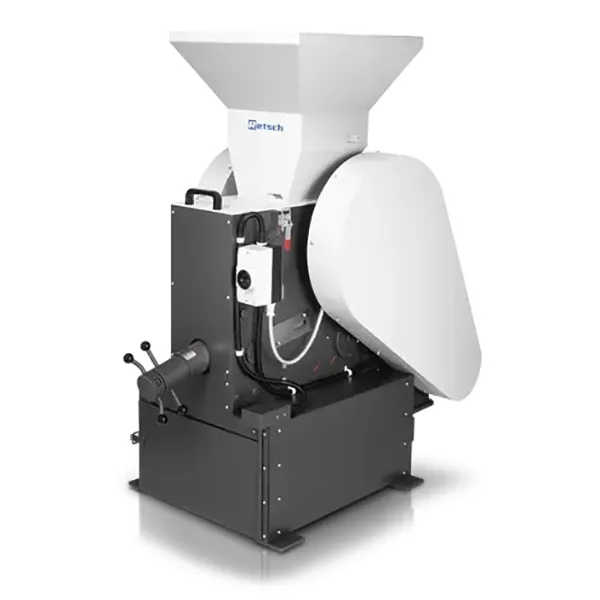

JAW CRUSHER BB 300

JAW CRUSHER BB 300

The Jaw Crusher BB 300 is specifically designed for accepting large feed sizes up to 130 mm. The gap width can be set stepless from 1-40 mm. Depending on the sample material, particle sizes down to 5 mm can be obtained, resulting in a crushing ratio of 26. A throughput of up to 600 kg/h is possible with the BB 300.

The RETSCH jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width and breaking properties of the sample material.Robust design, simple handling and cleaning are the features of the RETSCH jaw crusher models. Small amounts of sample are processed batchwise; for larger amounts the crushers can be operated continuously.

ROBUST & VERSATILE

• Excellent crushing performance
• Wide range of materials for contamination free grinding
• Wear compensation with zero-point adjustment
• Continuous gap width setting
• Easy-to-clean crushing chamber
• Suitable for continuous grinding
• Connector for dust extraction
