Renner GmbH

oil-injected screw booster

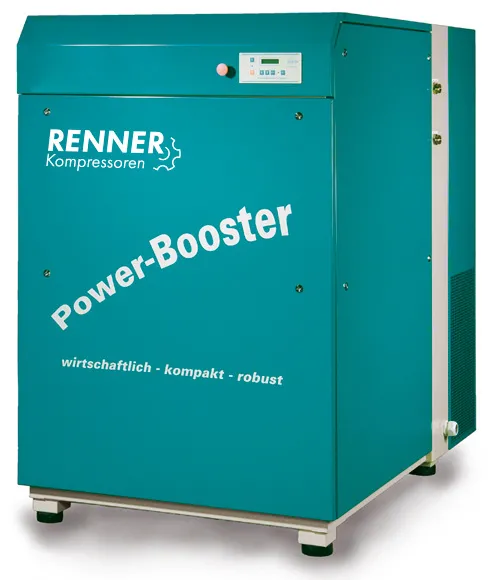

The oil-injected screw booster, the RENNER RS-M, is made for industrial use and efficiently generating compressed air.

The RENNER RS-M booster increases the pressure at the 1st stage to 40 bar with a maximum flow rate of 10.5 m³/min (depending on the admission pressure, motor power and other conditions). The range is from 18.5 to 45 kW at a final pressure of 40 bar.

A booster system should consist of at least one RS-M booster, an admission pressure unit from 6 to 14 bar, an air treatment system between the admission pressure unit and the RS-M booster followed by an air receiver and another air treatment system (if necessary).

Design features of the RS-M range

Features

• Compact design, small footprint

• Low vibration, no base required

• Low noise level

• Pulsation-free compressed air

• Control system with display

• Full load-idle-start/stop operation

Advantages

• 2-year full performance warranty

• Suitable for continuous operation

• Encapsulated air ends eliminate pipe-work and links with known sources of problems. No need for

• separate oil tank, no need for pressure test certificates (up to RSF 45.0).

• Non-wearing screw compressor air-end

• Automatic belt tensioner ensures long belt life and saves on maintenance costs

• Efficient noise-insulated canopy and multiple anti-vibration mountings for minimizing noise and

• vibration levels

• Door panels are easily removed allowing easy access to the individual components for servicing.

• Low maintenance costs

• Optimum heat recovery options

• Suitable for food-grade and biodegradable oils
