Regada, s.r.o

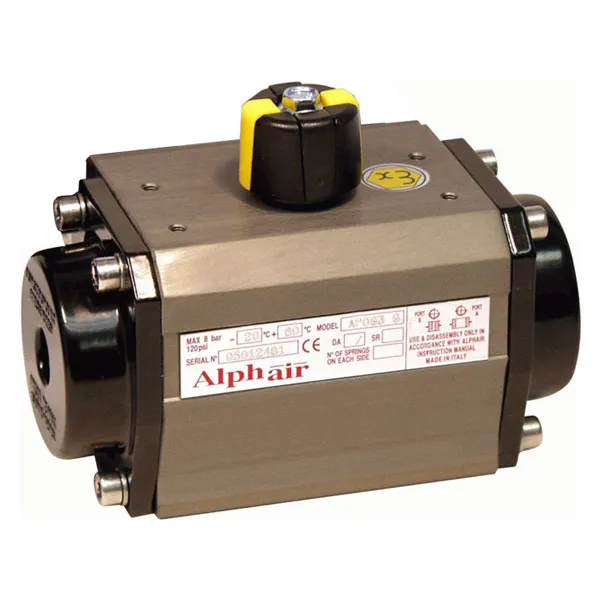

Alphair-series AP-with internal adjusting

Standard version

• Operating angle: 90°

• Ambient temperature: -20 to +80°C

• Shaft position and rotation direction: assembly variation: "A"

• Protection: AV (hard anodized protection)

• Mechanical connection: ISO 5211 / DIN 3337

• type "S" for square shaft

• Solenoid and accessories connections: according to

• NAMUR-VDI/VDE 3845

Special version

• Operating angle: 120°, 180°

• Ambient temperature: -40 to +80°C, or -20 to +150°C

• Mechanical connection: type: "D, L, H, V, W"

• Protection: NV (coating with chemical nickel),

• NN (coating with chemical nickel high phosphorous content),

• TF-TF (anodized protection + PTFE coating)
