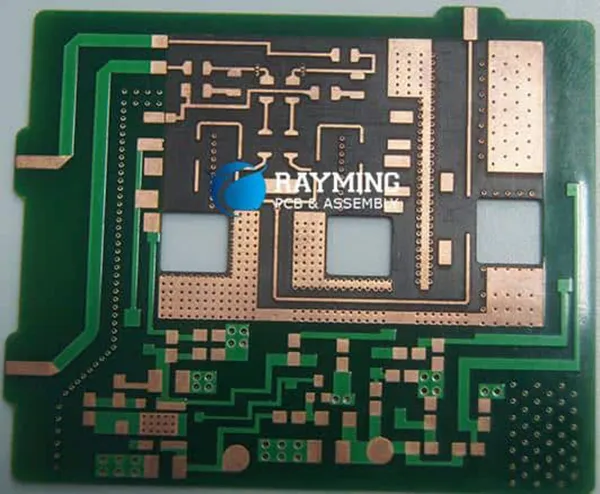

Rogers 5870 PCB
Rogers 5870 PCB
Rogers 5870 laminates are an essential material that offers various dielectric products for feed networks, antennas, power amplifiers, and microwave technology. These laminates provide high frequency with a low amount of Dielectric constant (Dk). RT/duroid 5870 are PTFE composites strengthened with glass microfibers.
These microfibers are responsible for its excellent Dk uniformity. Since it has a low amount of Dk, the Rogers 5870 laminates are ideal for high broadband uses whereby there is a need to reduce losses and dispersion. RT/duroid® 5870 helps in demanding the use of stripline and microstrip circuits.
Request Rogers 5870 PCB Quote Now
The Dk of Rogers 5870 laminates remains constant over a broad frequency range and is also uniform from one panel to the other. The low dissipation factor of RT/duroid 5870 extends its usefulness.RT/duroid 5870 can be cut and sheared easily.
These high frequency laminates are resistant to all types of reagents and solvents that are used in plating holes and edges. When they are needed for more critical applications, RT/duroid 5870 can be covered with copper foil. An aluminum or brass plate can also be used.
The dielectric thickness, weight, and type of copper foil should be specified when ordering these laminates. Duroid 5870 always comes with electro-deposited copper of about 2 ounces or with reverse-treated EDC on the two sides.
Rogers 5870 Features
These laminates have the following properties:
Dielectric Constant: This laminate features a dielectric constant of 2.33 +/- .02. This is an excellent one as it helps to maintain good mechanical and electrical properties. The microfibers help to achieve great dielectric constant uniformity.
Thermal coefficient: The thermal coefficient of this laminate is -115. This property makes Rogers 5870 suitable for exacting microstrip circuits and striplines.
Low thermal conductivity: The thermal conductivity of Rogers 5870 is measured at 0.22, this is very low. Low thermal conductivity implies that this laminate is applicable in varying environmental conditions.
Low Dissipation factor: With a low dissipation factor of .0012 at 10GHz, Rogers 5870 is an insulating material. Even when it is at room temperature, its dissipation factor remains very low.
Lead-free process compatible: Rogers 5870 is said to be lead-free compatible, a rare property in most laminates.
What are the Benefits of Rogers 5870?
Rogers 5870 laminates are important when building some mechanical or electrical equipment. These laminates have both mechanical and electrical properties which make them effective in building complex structures. They offer several benefits which would be discussed below:
Well-established material: RT 5870 is a strong and durable material that is needed for several applications. This laminate is an important framework when building mechanical or electrical equipment.
Uniform electrical properties: Rogers 5870 offers uniform electrical properties. The thermal conductivity, dielectric strength, and electrical conductivity are uniform over a wide frequency range.
Suitable for a humid environment: These laminates are an ideal option for a high moisture environment. They have the ability to absorb moisture.
Insusceptible to reagents and solvents: Rogers 5870 is highly insusceptible to reagents and solvents utilized in etching holes and edges.
Easy to shape: They are easy to cut and shear. They can be easily machined to shape also.
Isotropic: Since they are strengthened with glass microfibers, the properties of RT/duroid 5870 laminates remain the same when they are examined in different directions.
