Compact Geared Motors

Compact Geared Motors

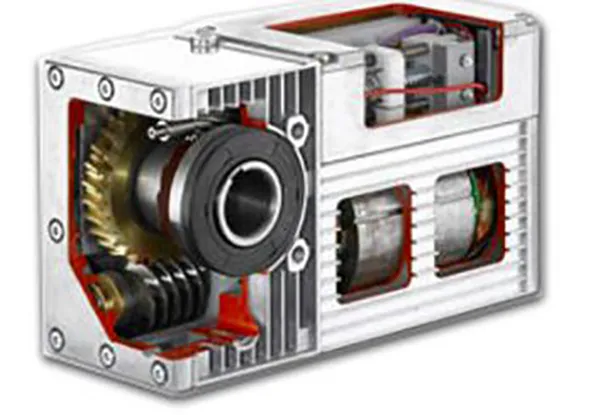

Framo Morat Compacta Slip-On Geared Motors

The compact dimensions and light weight of Framo Morat Compacta Slip-On Geared Motors are achieved by using a spur and worm gear transmission, combined with performance-optimised motors. Compactas are particularly suitable for applications where space is limited.

Compacta slip-on geared motors with integrated limit switches are ideal drives for reversing tasks. Their compact design & low weight are achieved by using spur and worm gear transmission, combined with performance-optimised size motors. The Compacta range is particularly suitable for applications with a limited amount of space. Numerous types of motors can be fitted, including 3 phase, single phase AC and 24 V DC, with unit output speeds ranging from 0.9 to 193 rpm and output torques from 6 to 600 Nm. Additional features, such as IP65 rating, ATEX 95 explosion proof, brake, fan, encoder and potentiometer, are available.
