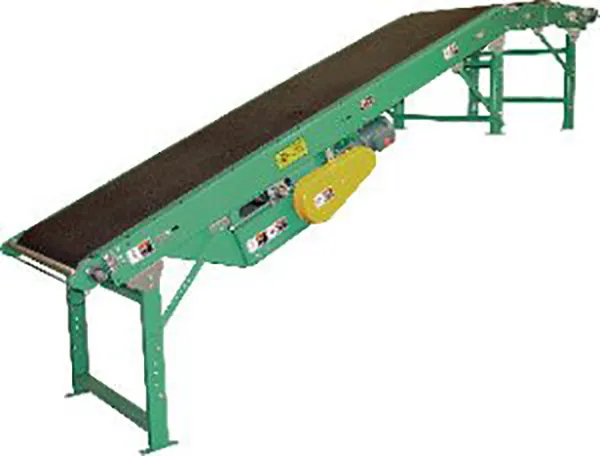

FTC – Inclined Slider Bed Belt
FTC – Inclined Slider Bed Belt
Applications / Features:
- Booster Conveyor for Gravity Flow Systems
- Transporting Between Floors
- Center Drive
STANDARD SPECIFICATIONS
Belt – 14″, 18″, 24″, 30″ and 36″wide rough-top belt.
Bed – 20″, 24″, 30″, 30″, 36″ and 42″ wide 12 gauge powder painted formed steel slider bed. Bed is 6-1/2″ deep x 6 feet, 8 feet or 10 feet long spliced together with splice plates.
Under-Trussed Bed – Extra reinforcement to prevent sag in longer bed sections in addition to reinforcing angles, 24 feet and longer.
Double Nose-Over – Two 16″ long adjustable bed sections provide a two step transition from incline to horizontal with 15° to 35° adjustment.
Tail Pulley – 4″ diameter, crowned with 1-3/16″ diameter shaft through 30″ wide belt. 6″ diameter tail pulley with 1-7/16″ diameter shaft turned down on ends for wider than 30″ belt.
Drive Pulley – 8″ diameter crowned and lagged. 1-7/16″ diameter.
Snub Roller – 2-1/2″ diameter at drive pulley and 2″ diameter at tail pulley.
Return Idlers - 1.9″ diameter, adjustable.
Take-Up – Located in center drive assembly, provides 24″ of belt take-up.
Pop-Out Roller – Free floating, 1-3/8″ diameter rollers located at tail pulleys with gravity connector rods. Will lift out if anything is caught between pulleys and rollers.
Floor Supports – Adjustable stands to give 31″ to 45″ height at each end;with knee braces.
Bearings – Sealed pre lubricated with cast iron housings.
Speed Reducer – C-Face mounted heavy duty worm gear reducer.
Motor – 3/4 HP 230/460-3-60 TE motor.
Belt Speed – 60 FPM constant.
Capacity – 100 lbs. per foot maximum.
OPTIONAL EQUIPMENT
Belt – Neoprene ruff-top, PVC rough-top, other types and styles.
Guard Rails – Adjustable channel, continuous channel, or solid steel guard rails available.
Ceiling Hangers – 1⁄2″ diameter threaded rods of 8 feet long with locking nuts and mounting hardware. Other lengths are available.
Floor Stands – Lower or higher than standard.
Lower Powered Feeder Section – Separate belt section with (2) supports, adjustable from 28-1⁄2″ to 42-1⁄2″. Driven by roller chain from tail pulley of inclined section. Integral feeder available.
Single Nose - Over – A straight section 23-1⁄2″ from tail pulley to center of nose-over roller provides for smooth transition from 0° to 15° incline.
Motor – Single phase, energy efficient, explosion proof, etc. Other HP available.
Belt Speed – Constant and variable belt speeds available.
Electrical Controls – Magnetic starters and push button stations; manual motor starters with overload protection, others
