Pulsar Measurement

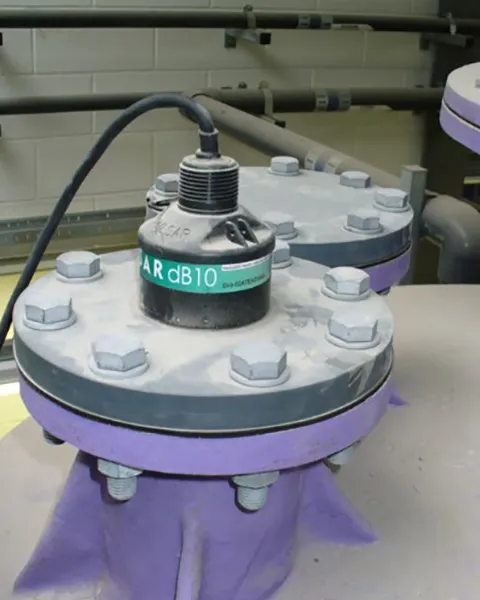

dB Transducer Flanged Mounting

Flange options are available for Pulsar Measurement dB3, dB6, dB10, and dB15 transducers, ANSI or DIN specification, all featuring full PTFE coating on the process wetted side. Various flange sizes are available. Maximum vessel pressure on flanges is 0.5 bar (7 psi). These incorporate the performance features of the standard products but additionally offer a front thread mount option to suit threaded nozzles or flanged tank entries. These integral flange options are available with the standard family of dB transducers, up to the dB15 size.
