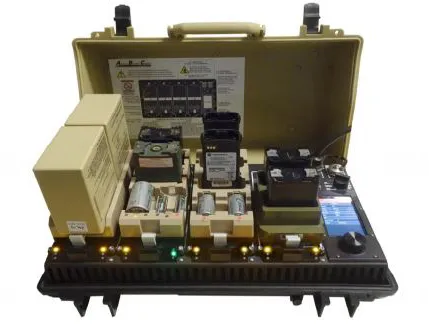

3C Advance Battery Charging System
Advanced Battery Charger (ABC)
BTC-70100 - The Ultimate in Charging Performance
Fast Charging: 8 BB-2590/U Batteries Charged From 0% to Full in Less Than 3 Hours
16 Conformal BB-2525/U Batteries Charged in Less Than 3.5 Hours
(1000W) or 300W User Selectable Input Power Control
4 Adapter Ports Provide 8 Independent Charging Channels
Utilize Your Legacy SPC (Soldier Portable Charger) Adapters or New ABC Adapters
Incorporates Field Proven/Design Heritage from the Highly-Successful SPC and SPC Lite Chargers
Over 65,000 fielded!
Features:
- Flexible input power: AC (90-264Vac), DC (11-22Vdc, 46A), or Solar with MPPT (Maximum Power Point Tracking, 11-36Vdc)
- Familiar charging status: Red/Yellow/Green LED indicators
- Full-color 4.3” LCD display
- Menu navigation through rotary selector switch: gloved use, night operation compatible, blackout mode
- Display menu functions allow the user to see:
|
Detailed battery status (SOH, SOC, charging status...)
|
|
Charger’s performance
|
|
System configuration
|
- 4 USB Type-A Charging Ports: 5V, 2A capable
- 1 USB Type-C Charging Port: 5V, 3A capable
- Stand alone firmware upgrade using USB flash drive
- Removable cover to minimize required footprint
- Durable, compact and lightweight design: <1.0 ft3, <22 lbs
- IP67 - water resistant up to 3 feet for 30 minutes
- Compliant with MIL-STD-810, MIL-STD-454, MIL-STD-461 and MIL-STD-1275
- RoHS Compliant
- CE Marked
Technical Specifications
PHYSICAL CHARACTERISTICS
Dimensions 20.0L x 13.1W x 6.3H (in), 508L x 333W x 160H (mm) Input Power AC: 90-264Vac, 47-440Hz, 1000W
Weight 22.0 lbs (9.98 kg) DC: 11-22Vdc, 46A Maximum
Material / Color Polypropylene ABS Plastic / Black Base, Tan Cover; Aluminum Chassis Solar: 11-36Vdc, 1000W Maximum
National Stock No. 6130-01-660-3696
CE Marked
Operating Temperature -31°C to 55°C (-25°F to 131°F)
Storage Temperature -40°C to 71°C (-40°F to 160°F)
Input Power AC: 90-264Vac, 47-440Hz, 1000W
DC: 11-22Vdc, 46A Maximum
Solar: 11-36Vdc, 1000W Maximum
