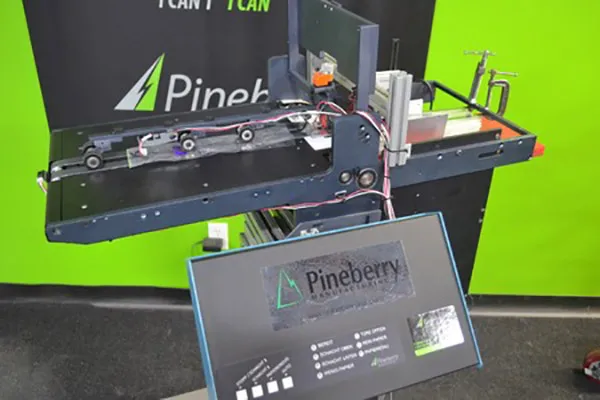

PF 12 Pile Feeder

PF 12 Pile Feeder

Our PF 12 Pile Feeder is a stepper motor (servo motor optional) top feeder manufactured in North America.

The PF 12 Pile Feeder is low maintenance and can feed multiple product widths up to 28 inches wide.

Other Variations of our Friction Feeders:

• SF Friction Feeder
• SF Long Friction Feeder
• HSF Friction Feeder
• HSF Vertical Friction Feeder
• Open Source Friction Feeders

Specifications

APPLICATIONS:

• •    Leaflets - insertion, dispensing
  •    Envelopes
  •    Pamphlets
  •    Flyers
  •    Forms
  •    Slip sheets
  •    Advertising pieces
  •    Photo album pages
  •    Photographic paper
  •    Magazine paper
  •    Invoices
  •    Pouches
  •    Plastic sheets
  •    Plastic bags
  •    Plastic packaging

FEATURES:

• All anodized aluminum framework
• All stainless-steel shafting
• Patent pending gear-driven singulating mechanism
• All permanently lubricated ball bearing journals
• FDA-design features are standard

MATERIAL SIZES:

• 1" X 1"* (25 mm X 25 mm up to 28" X 15" (710 mm X 381 mm)

(*with small product option)

(*We can manufacture to accommodate)

MATERIAL THICKNESSES:

• .003" up to .31"* (.07mm up to 7.8mm)

*up to 1" (25mm available)

DISPENSING SPEED:

• 0 to 6,500 IPM (variable)
•   POWER REQUIREMENTS:
  •    240/120 VAC 50/60 Hz 6 amp
•   OPTIONS:
  •    Stepper Motor or Servo Motor
  •    Ink Jet Printing
  •    Glue applications
  •    Barcode Scanning
  •    Camera system
  •    Encoder
  •    Velocity/target tracking
  •    PLC/PC interface
  •    Food grade stainless steal
  •    Speed matching
  •    Batch count/exit trays
  •    Onsert/Topsert
  •    Feeds horizontally or vertically
  •    Wider models available
