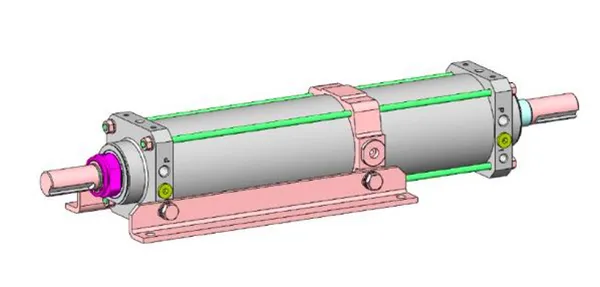

PDR – rotary actuators

Benefits

• Double acting pneumatic rotaryactuator with adjustable endcushioning to operate hatches and doors
• Maximum torque at the end positions

Technical details

Operating medium

Compressed air, filtered to 40 μm, lubricated or without lubrication

Optional output torque

Maximum torque at closed position

to keep the door closed – minimum in the middle

Rotary angle

170°

Pressure range

1…10 bar

Ambient temperature range

-20-+70°C

Materials

End caps and cylinder barrel – Anodized aluminium

Piston rods – AISI303 chrome plated

stainless steel

Mounting parts – AISI316L stainless steel

Piston rod nut – Zinc plated steel

Plugs – Brass
