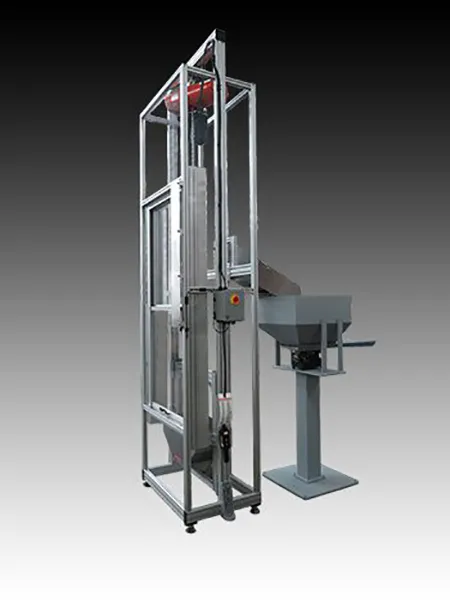

Space-Saving Hoist Elevator

Space-Saving Hoist Elevator

The Performance Feeders hoist elevator is a space-saving bulk parts elevator that allows parts to be loaded at an ergonomic height and discharged at heights up to 84". With a 24" x 36" footprint and vertical lifting, the hoist elevator takes up much less floor space than other bulk elevators.

How it works

The operator loads parts into the bin, closes the loading door, and operates the elevator with the handheld pushbutton controller. Safety features include an interlock switch on the load door that prevents operation of the elevator when the door is open, and an emergency stop button.

Features

• Stainless steel bin and discharge chute, available with UHMW lining for part protection.
• Extruded aluminum frame with clear Lexan panels.
• Ergonomic load height allows loading without operator having to bend over or lift boxes overhead.
• Handheld operator controls with simple pushbutton operation.
• Emergency stop button.
• Interlock safety switch on load door that prevents operation of elevator with load door open.

Standard specifications

• Input voltage: 110, 220 or 440V AC
• Bin capacity: 2 cu. ft.
• Weight capacity: Up to 300 lb.
• Lift speed: 32 FPM
• Load height: 28"
• Discharge height: Built to specification. 48" minimum, 84" maximum
