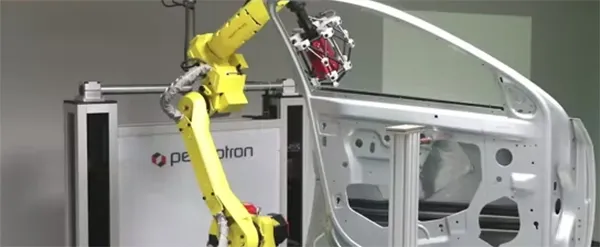

Automated Checking Fixture
Perceptron has combined over 35 years of metrology and manufacturing experience to create a truly absolute, correlation-free checking fixture for your plant floor. Virtually everything about AutoGauge-ACF is automatic – from robot path generation that enables quick setup and changes to the display of measurement results for real-time analysis.
AutoGauge-ACF utilizes Perceptron’s latest AccuSite optical tracking technology and Helix-evo sensor to achieve system level accuracy of less than 0.150 mm, validated using industry standard performance metrics, per the DIN-ISO 10360-8 standard. AccuSite turns the robot into a simple mover and eliminates all mechanical drift and temperature influences from the measurement results.
Measure More
Inspect additional features like holes, studs, threaded fasteners, and seal surfaces that checking fixtures cannot.
Accelerate Your Launch
Shorten launch time by identifying incoming problems faster and fine tuning your build during the launch phase.
Measure As-Built
Measure parts as built; no requirement for sprays, stickers, or fiducials.
Configurable
AutoGauge-ACF supports your robot and PLC standards, so you have complete control.
