Beam shifting

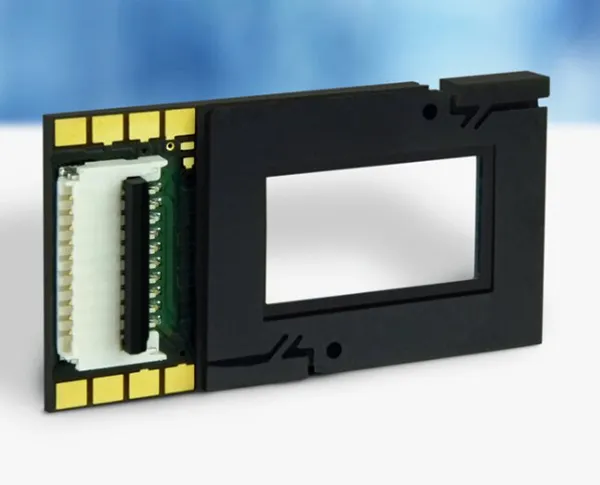

Optotune’s XPRs are Extended Pixel Resolution 2- and 4-position actuators. By acurately tilting a glass window, light that passes through it is shifted laterally. Standard products are available with clear apertures ranging from 9mm to 33mm.

Main features of 4-position Actuators:

• High angular position accuracy of typically +/-5 to 8%
• Fast transition times of typically 1.2 to 1.35ms
• Low acoustic noise of typically 20 to 22dBA at 30cm
• Fully pre-calibrated at 50 & 60Hz for temperatures up to 75°C
