Collaborative Robot Arms

Collaborative Robot Arms

Cost-effective, flexible, safe, and easy-to-use collaborative robots (cobots) are just the ticket to give your business greater control. You don’t have to worry about a cobot calling in sick or quitting without notice, getting bored or injured, or taking too long to learn a new process.

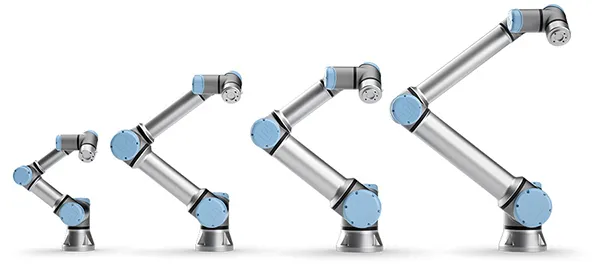

Universal Robots' three different collaborative robots are easily integrated into existing production environments. With six articulation points, and a wide scope of flexibility, the collaborative robot arms are designed to mimic the range of motion of a human arm.

UR3E ROBOT ARM

• Reach: 500mm / 19.7 ins
• Payload: 3 kg / 6.6 lbs
• Weight: 11.2 kg / 24.7 lbs
• Footprint: 128 mm / 4.6 ins
• Axis: 6 axis
• IP class: IP54

UR5E ROBOT ARM

• Radius: 850mm / 33.5 ins
• Payload: 5 kg / 11 lbs
• Weight: 20.6 kg / 45.4 lbs
• Footprint: 149 mm / 5.9 ins
• Axis: 6 axis
• IP class: IP54

UR10E ROBOT ARM

• Radius: 1300mm / 51.2 ins
• Payload: 10 kg / 22 lbs
• Weight: 33.5 kg / 73.9 lbs
• Footprint: 190 mm / 7.5 ins
• Axis: 6 axis
• IP class: IP54

UR16E ROBOT ARM

• Radius: 900mm / 35.4 ins
• Payload: 16 kg / 35.3 lbs
• Weight: 33.1 kg / 73 lbs
• Footprint: 190 mm / 7.5 ins
• Axis: 6 axis
• IP class: IP54
