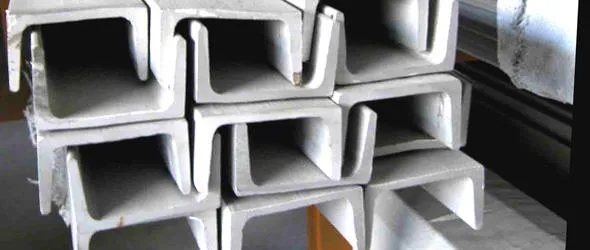

Stainless Steel Channel
At O'Neal Steel, we inventory stainless steel channels in 304 / 304L and 316 / 316L alloys in a variety of sizes to meet the requirements of your application. Stainless steel channel is shaped using a vertical web with top and bottom flanges at a 90 degree angle to the web and inside radius corners to increase the channel’s strength. It can be extruded, hot rolled or laser-fused.
Stainless channels have a dull gray, mill finish. It is used for applications that require the high strength, toughness, corrosion-resistance and easy sanitizing properties of stainless steel. These include raceways, supports, braces and frames for machinery, equipment and housings in corrosive environments 304 / 304L CHANNEL
304 / 304L Channel
CHARACTERISTICS
304 / 304L stainless steel channel is used for structural support products in a wide range of industries.
Corrosion resistance makes it an ideal material for chemical, petrochemical and waste treatment applications.
High temperature resistance makes it ideal for use in cryogenic and high temperature processing applications.
Surface finish makes it an ideal for food, medical and pharmaceutical manufacturing applications.
304 / 304L stainless steels are low cost, effective materials that are easy to machine and weld to exact tolerances.
APPLICATIONS
Stainless channels manufactured from 304 / 304L are used for raceways, braces, frames to support equipment, machines, tanks, enclosures and housings.
SIZES
Depths: 1.5" thru 8"
Flange Widths: 0.75" thru 4"
Typical Chemical Properties
Carbon, Max %
0.03
Manganese, Max %
2.00
Phosphorus, Max %
0.045
Sulphur, Max %
0.03
Chromium, Max%
17.5
Nickel, Min%
8.0
Molybdenum, Max%
N/A
TYPICAL MECHANICAL PROPERTIES
Tensile Strength ksi
81
Yield 2% Offset ksi
37
Elongation in 2” (50.80mm)
55
Call today for a quote on 304 / 304L stainless steel channel.
