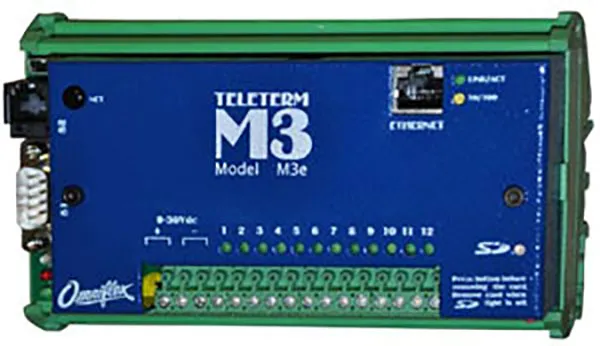

Teleterm M3R1e RTU
Teleterm M3R1e RTU 9-30Vdc,2.4GHz Radio
- 12 Configurable Inputs and Outputs`
- SD Card logging
- Programmable in IEC61131-3 using ISaGRAF (optional)
- 10/100 Ethernet
- 2.4GHz Radio Port (licence free band)
- Low power operation
Teleterm Programmable RTU 2.4GHz 63mW FHSS Radio, 10/100 ETHERNET, 12 Universal I/O DI/DO/AI/AO, Modbus Master, Slave or Custom Protocol.9-30Vdc powered. Battery backed Real Time Clock, ISaGRAF Ready; order CC030A-URTT to activate
The Teleterm M3 Series is a State of the art RTU range designed to expand the possibilities of remote monitoring and control by providing a cost effective platorm with a wide range of features.
Each unit comes with 12 universal I/O that can be configured for analogue or digital input or output according the application:
I/O 1 to 10 can be Digital Input, Digital Output, Analogue Input.
I/O 11 and 12 can be Digital Input, Analogue Input or Analogue Output.
The On board RS232/485 port can be used to acquire data from third party devices using either the Modbus Protocol or a custom "plug in" protocol.
An SD memory Card is also incorporated for local data logging applications.
Communications and Programming options differentiate one unit from another.
The C2363A-31 has the following features:
- 12 I/O universal
- 2.4GHZ FHSS Radio Port
- RS232/RS485 Port
- 10/100 ETHERNET Port
- IEC61131-3 programming using ISaGRAF (optional)
