OKW Enclosures, Inc.

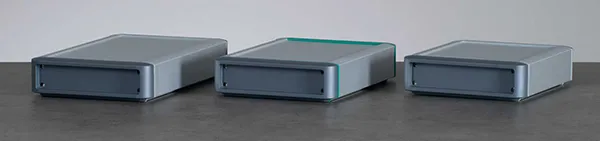

SMART-TERMINAL

SMART-TERMINAL

Sophisticated aluminum profile enclosures for central control units

Our new SMART-TERMINAL aluminum profile enclosures feature a highly quality matt anodized finish. These robust, elegant and highly attractive cases offer plenty of space for large-volume electronic assemblies, for example touch screens, display modules, PCBs etc. A variety of technical advantages, individual profile lengths on request, and creative designer options make the SMART-TERMINAL the last word in excellence for tough industrial display enclosures.

• 3 basic enclosures in the profile lengths 6.299", 7.874" and 9.449" (overall enclosure length with end covers + 1.654" or with end plate + 0.157"), width 6.693", height 1.969"
• side covers in lava (similar to anthracite) moulded in high-quality ASA+PC-FR plastic
• designer seals made of TPV material in volcano or green
• optionally available with a simple aluminium plate as a lateral end plate
• highly versatile design can be used as table-top, sloping front and wall-mounted enclosures
• recessed area in top for the installation and protection of displays, membrane keypads and operating elements(SMART-TERMINAL 160: 5.7"/14 cm; SMART-TERMINAL 200 and 240: 7"/17.8 cm)
• horizontal PCB guides and screw channels inside the enclosure
• two-part aluminum profile facilitates the assembly of the enclosure and installation of the components, with no visible fixing screws
• flat areas for easy installation of the interfaces
• side covers with recessed area to protect the cables and connectors
• optional accessories: wall suspension element, case canting kit for an ergonomic reading angle of 12°, set of square-head nuts for PCB mounting

Special sizes and versions

• individual profile lengths to customer specification - please ask for a quote
• on request, designer seals and covers in other colors as creative/visual features, minimum order quantity 200 pcs
• Bracket according to VESA standard for the SMART-TERMINAL on request
