Oilgear

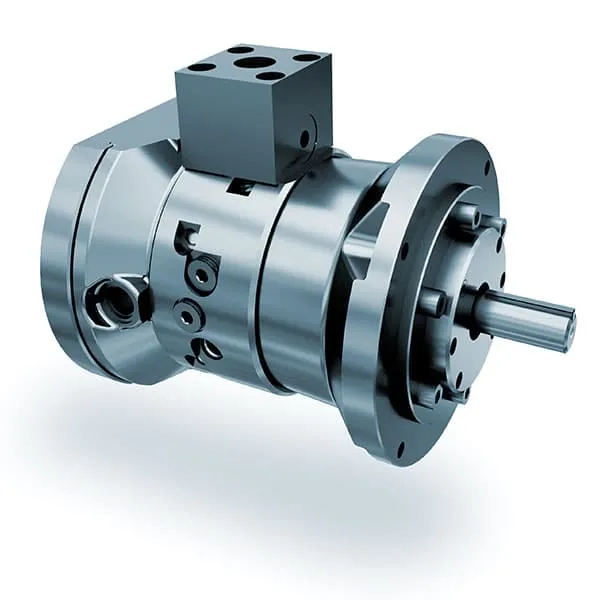

Fixed Displacement Pumps PFBA-02

PRODUCT DETAILS

Originally part of the Towler high-pressure pump line, PFBA pumps are extremely reliable when working with water-based fluids. The PFBA-02 has a single high-pressure discharge port.

This pump line is designed for high-speed operation. It’s also compatible with high-pressure and high-shock loads. That’s because of the swashmember angle. At 13 degrees, it creates a low piston head loading.

Attached to the swashmember, a polymer-coated plate provides a bearing surface for thrust loads. The six hardened steel pistons located in a stationary body are not subject to centrifugal force. This reduces load and wear. An optional, built-in supercharge pump lubricates and provides case flow that cools the main pump and eliminates the need for an external supercharge pump.

STANDARD FEATURES

• Six hardened steel pistons located in a stationary body are not subject to centrifugal force, thus reducing load and wear
• The piston load is caused by pumping action only, therefore higher operatingspeeds are possible
• Hydrostatically balanced steel piston shoes
• Reduces piston shoe load and provides lubrication for increased life
• Facilitates a high degree of contamination wear resistance
• Permits higher pressure operation with long life
• Allows operation with low viscosity or other special fluids including 95/5
• Single Swash Plate
• Hardened steel for hard on hard wear resistance
• Inlet Valve
• Inlet and delivery check valves are positive seated for high volumetric efficiency
• Rugged, high response, lightweight poppet construction assures long life
