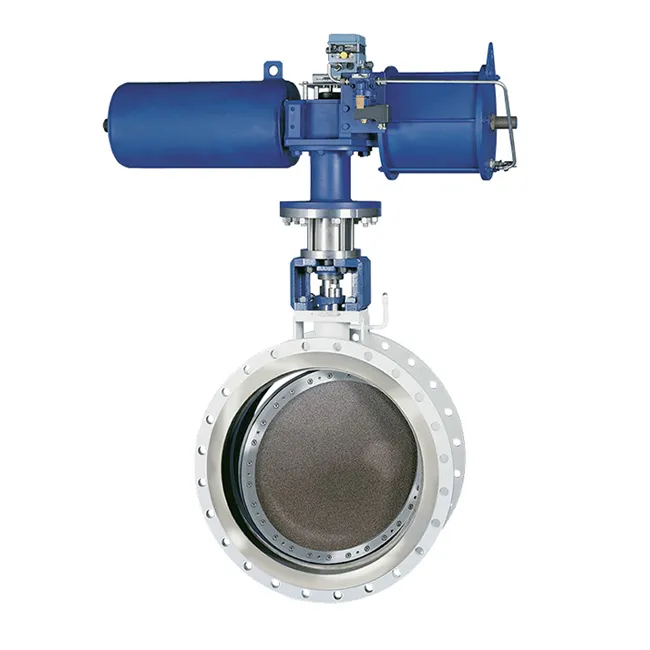

Metallic leakproof butterfly valve with triple eccentrically mounted disc. Proven system for the most demanding applications: oxygen, gases, combustion gases and liquids as well as abrasive and corrosive media.
KX
Nominal value range: DN 100 - DN 2800 or 4 "- 112"
Pressure range: PN 6 - PN 400 / ANSI Class 150 - 2500
Temperature range: -196 ° C ... + 850 ° C
Leakage rates: EN 12266-1 A / ASME B 16.104 Class VI
Optional: TA-Luft
Certificates: Fire Safe; SIL 2
Butterfly Valves of the Safeflex series are designed and manufactured according to the requirements of the application. Face to face dimensions are EN 558-1, API 609, ANSI B16.10. Individual face to face dimensions are possible as well. The metal sealing system fulfills the leakage-class requirements of EN 12266-1A and ANSI B16.106 Class VI (zero leakage). Individual material selection offers a high grade on flexibility. The valves can be operated by means of different types of actuators. Actuator connections are according to international standards.
