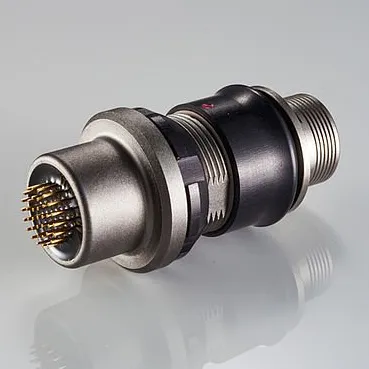

ODU AMC® PUSH-PULL

ODU AMC® PUSH-PULL

DESCRIPTION

With its Push-Pull design, the ODU AMC® can be swiftly mated without force and unmated quickly – and you can do both blind, without needing to see the connector. The locking state is unambiguous and reliable even in hard-to-access places.

  • Quick and simple mating and locking

  • Quick and easy demating

  • Blind mating and demating possible

  • Low space requirements for devices

  • Unambiguous and reliable locking state

  • Low force required

FEATURES

  • Extremely robust and stable housing with non-reflecting surface

  • Push-Pull locking

  • Maximum operating reliability thanks to mechanical coding and visual colour coding

  • Watertight: protection class IP68 and IP69 K

  • Operating temperature range from -51° C (-60° F) to +125° C (+257° F)

  • 3 - 55 poles

  • Contacts for solder and PCB termination

  • Light, compact and easy to use – blind mating is also possible

  • Highspeed data technology

  • 360° shielding for excellent, trouble-free data transfer

  • Long service life – > 5,000 mating cycles

  • Versatile and individually configurable: Signal, power, high/low voltage transfer and coax possible within one connector

  • 5 sizes
