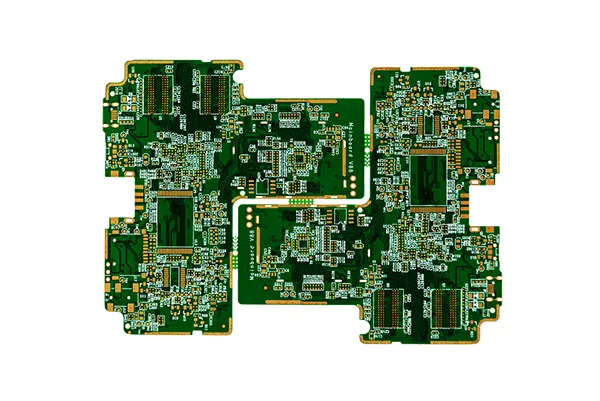

Multilayer
Multilayer PCBs are the PCB types that have 3 or more layers. They are preferred when the design demands can not be fulfilled by double-sided PCBs. Devices with more computing power such as PC mainboards, cell phones, telecommunication devices, etc., require multilayer PCB designs that allow running complex ICs and processors.
Technical Specs
Feature
Odak PCB's technical specifications
Number of layers
4-24 layers
Materials
FR4, high performance FR4, low loss and low DK materials
Copper thicknesses
35 μm - 105 μm
Pcb thickness
0.4 mm to 2.6 mm
Minimum line width
100 μm
Minimum copper to copper
Maximum panel size
500 mm x 600 mm
Surface finish
Lead-Free HASL, OSP, ENIG, ENEPIG, Immertion silver, Immertion gold, Hard gold
Minimum hole size
0.15 mm
Standard core thicknesses
4 layer 1.1 mm, 6 layer 0.36 mm, 8 layer, 0.25 mm
Standard prepreg thickneses
7628 : 180 μm , 1080: 80 μm
