NTD Offshore A/S

NTD Offshore A/S Herningvej 78-80 DK-6950 Ringkøbing, Denmark

Winches-140103

140103

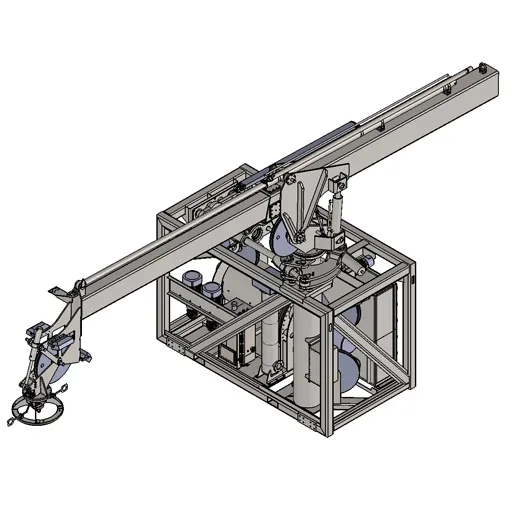

The Winch

140103

The Winch

Type	Electric umbilical winch
SWL	5 Te
Line speed	2,44 m/sec
Width	4500 mm
Height	2800 mm
Depth	2500 mm
Drum Core length	963 mm
Drum Core Diameter	1000 mm
Flange Diameter	1860 mm
Cable Capacity	2500 m. Ø26,5 mm cable in 16 layers, LW 90 deg. under drum.
SWL	5 T outer layer 16
Power	140 kW
