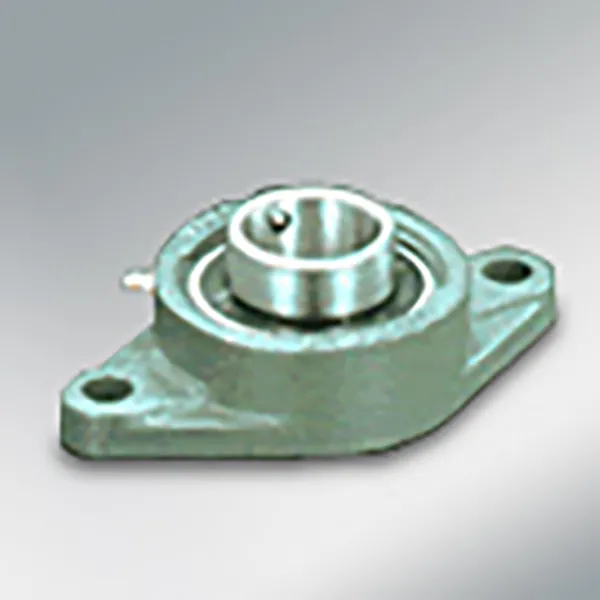

Oval Flanged Units

Oval Flanged Units

The bearing housing features a diamond-shaped flange for easy mounting to the machine base or side wall with two bolts. They are suited in applications where mounting space and the distance between shafts is small. Often, the spacing between bolt holes is equal to the diagonal positioning of square-flange types.

Features

1. Customizable bearing housing materials
   In addition to gray cast iron standard materials, spheroidal graphite iron (ductile cast iron), general rolled steel, and stainless steel options are available.
2. Various housing types
   Choose from a wide assortment of housing shapes and sizes.

Applications

1. Roll support
2. Carrier/Conveyance Equipment
