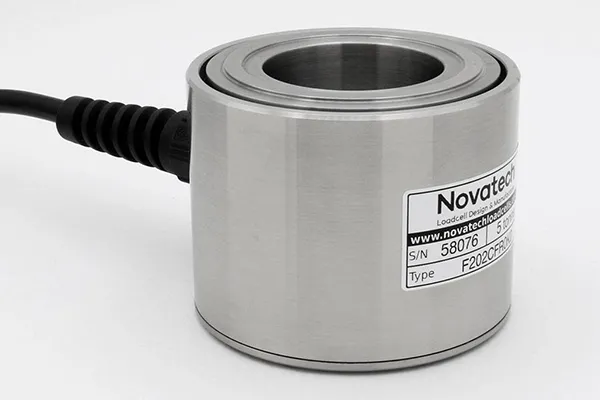

F202 Donut Loadcell

F202 Donut Loadcell

Standard Ranges 10, 25, 50, 100 and 200kN (1 to 20tonnef)

• Hardened stainless steel body
• Sealed to IP65
• Very high structural load limit
• Tensile applications are ‘fail-safe’
• Traceable calibration with certificate included in the standard price
• Standard 1 year warranty

F202 - Geometry: Axial strain cylinder in a sealed case, with raised end load bearing faces and hole right through. For use in compression or in fail-safe tensile applications.

The F202 is ideally suited to engineering force measurements including through centre safety testing of cables, rods and bolts.

It is designed for easy installation, usually between two flat faces bearing on its loading rings, either unattached or with retaining spigots positioned in the centre hole. Alternatively tensile load transfer can be achieved via a tie rod assembly through the centre hole. In this way the loadcell can indirectly measure tensile loads in a "fail-safe" mode.

A loadbutton and base plate are available for the F202.

We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.
