Acetylene Compressors

Acetylene Compressors

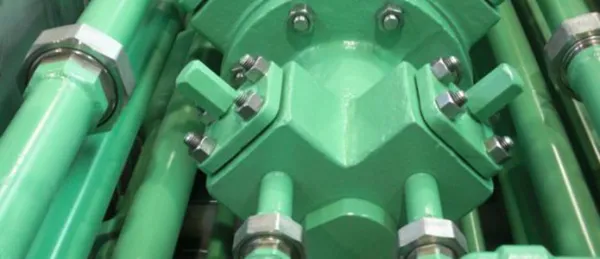

Conservatively designed, silent in operation, and well known for their exceptionally reliable performance, Norwalk acetylene compressors are slow speed, water cooled, reciprocating piston compressors- suitable for continuous service.

Three (3) Standard Size Compressor capacities available as 7800 SCFH (210 NCMH), 3200 SCFH (85 NCMH), and 1800 SCFH (48 NCMH):

“12 x 10” Maximum capacity 7800 SCFH @ 8 PSIG

COMPRESSOR PARAMETERS:

• Rated suction pressure:  8 PSIG
• Allowable suction pressures:  0 – 8 PSIG
• Rated suction temperature: 60 DEG F
• Rated discharge pressure:  400 PSIG
• Rated delivery capacity: 130 SCFM
• Brake Horsepower: 42.4 HP
• Recommended Motor Horsepower: 50 HP
• Maximum Compressor speed: 125 RPM
• Minimum Compressor speed: 80 RPM
• Recommended Motor speed: 900 RPM
• Piston stroke length: 10 inches
• Piston Rated Speed: 208 FPM
