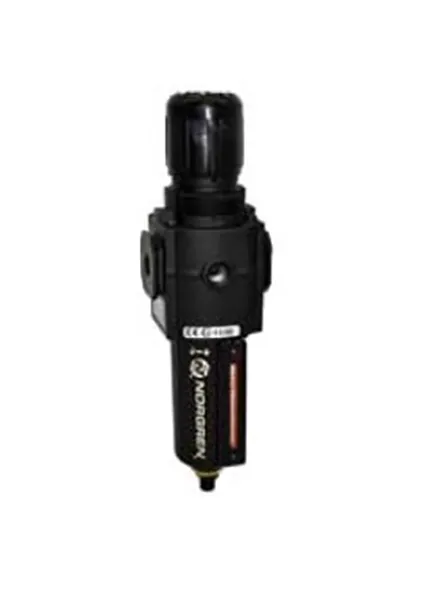

Excelon filter/regulator, G1/2, 0.3-10 bar, automatic drain, 40µm filter element, without gauge
ITEM: B73G-4GK-AD3-RMN
Medium:
Compressed Air
Port size:
G1/2
Maximum inlet pressure:
17.0 bar
Operating temperature:
-34 ... 80 °C
Filter element:
40.00 µm
Drain type:
Auto drain
Technical Details
ATTRIBUTE
Outlet pressure adjustment:
0.3 ... 10 bar
Relieving/non-relieving:
Relieving
Gauge:
Without
Gauge port:
Rc1/8
Pressure range:
5 ... 150 bar
Material - Adjusting knob:
Acetal resin
Material - Body:
Aluminium
Material - Bonnet:
Material - Bowl:
Material - Elastomers:
Neoprene
Material - Filter element:
Sintered polypropylene
Series:
Excelon
