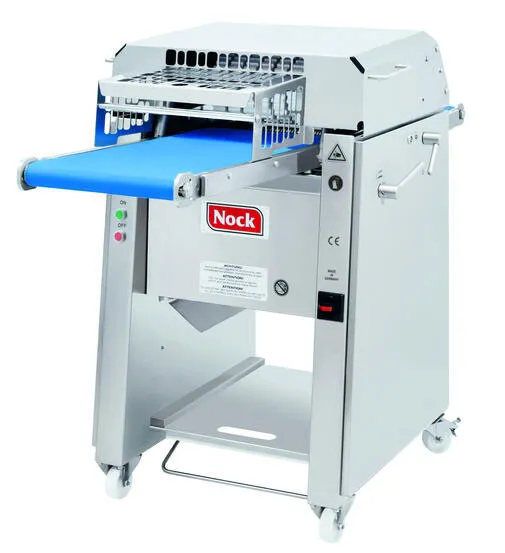

CORTEX CB 460 DERINDER

CORTEX CB 460 DERINDER

Derinding machine with medium length infeed conveyor for automatic processing and special suitability for "manual" derinding with open top operation

FEATURES AND APPLICATION RANGE

cutting width:430 mm

cutting speed:24 m/min

features:Derinding machine with medium length infeed conveyor for automatic processing and special suitability for „manual“ derinding with open top operation.Low side walls for optimal manual derinding.

application:automatic derinding of all flat and high pieces as for example belly, back fat, rind cut to size, partial cuts, shoulders etc.

derinding of round parts, for example ham or shoulder, open top operation

STANDARD EQUIPMENT

• infeed conveyor
• discharge slide sheet
• storage plate for centering the stacking container (E1, E2), can be removed
• without tools
• access protection at the rear for improved safety at work
• blade gap infinitely adjustable
• spring suspended blade holder for perfect derinding results
• spring suspended pressure roller, 3-stage variability in height
• tooth roller with scraper comb
• exchangeable infeed table and foot switch bar to derind round pieces with open top (machine can be effortlessly converted)
• NOCK POWER PLATES® grant robustness and service friendliness also in industrial use
• NOCK EASY-FLOW® safety cover for exemplary safety at work
• conveyors can be removed within seconds without any tools
• lockable castors
• stainless steel
• stainless steel bearings

OPTIONS

• discharge conveyor
• plastic modular belts
• inflated pressure balloon
