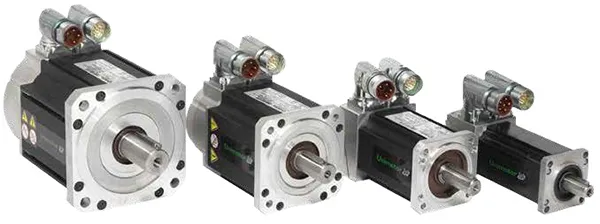

LD Series Servo Motors
LD Series Servo Motors
The LD Series servo motors build upon the Nidec Motion servo portfolio to provide a 40-50V DC servo solution with a wide variety of customization options. The LD series provides a torque range of 1.45 Nm to 10.2 Nm, multiple connector types, IP65 rating (IP50 with flying leads), and rated speeds from 1000 to 6000 rpm.
This versatile series of DC servos comes in four sizes with multiple mounting options, as well as a variety of IEC and NEMA flanges. Our DC Servo Motors are available with various shaft diameters that can be ordered in keyed or plain variations.
• Low winding voltages of 40Vdc to 50Vdc
• Continuous torque ratings ranging from 1.45 Nm to 10.2 Nm
• Rated speeds ranging from 1000 to 6000 rpm, with additional options available upon request
• Available in multiple sizes
• Brake option available
• Multiple connector types available: vertical, low-profile, rotatable, and flying leads
• Multiple feedback options for your desired level of accuracy and resolution
• support for Hiperface and EnDat protocols
• Custom shaft lengths and connector types to suit your requirements
