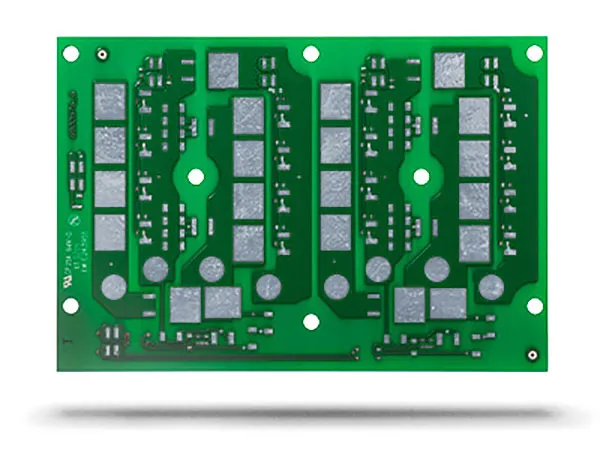

IMS – Insulated
IMS – InsulatedMetal Base PCBs
NCAB has approved factories that are specialists in this field, with plants dedicated to IMS – Insulated Metal Base PCBs. This segment is growing rapidly and supporting sectors including automotive, medical, aerospace, lightning applications and industrial controls.
New opportunities with insulated metal substrate
For greater amounts of energy or local thermal loads, e.g in modern constructions with high intensity LEDS, IMS technology can be used. The abbreviation, IMS, stands for “Insulated Metal Substrate.” This is a PCB built on a metal plate – normally aluminium – on which a special prepreg is applied, the primary qualities of which are an excellent capacity for heat dissipation and great dielectric strength against high voltages.
The advantages of IMS PCBs for heat dissipation
An IMS PCB can be designed with a very low thermal resistance. If, for example, you compare a 1.60 mm FR4 PCB to an IMS PCB with a 0.15 mm thermal prepreg, you may well find the thermal resistance is more than 100 times that of the FR4 PCB. In standard FR4 products, it is very difficult to dissipate a large amount of heat away from components.
