Steam Distribution Coils

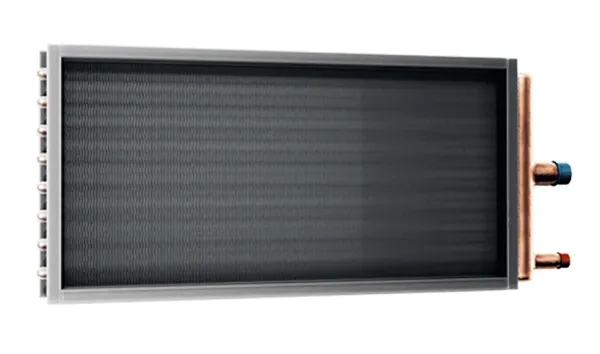

Steam Distribution Coils

Also known as non-freeze steam coils, they are designed for low temperature applications consisting of one header, a tube-within-a-tube configuration and steam jets that pass the steam from the inner tube to the outer tube.

TubesMaterials

• Carbon Steel
• Copper
• Cupro-Nickel
• Stainless Steel

Sizes

• 5/8"
• 1"

Wall Thickness

• .025": 1-25 PSIG
• .035": 25-75 PSIG
• .049": 75-125 PSIG

FinsMaterials

• Aluminum
• Carbon Steel
• Copper
• Stainless Steel

Specifications

• 5/8": 6-14 fpi
• 1": 6-12 fpi

Fin Thickness

• Aluminum
• • 0.006
• • 0.008
• • 0.010
• Copper
• • 0.006

HeadersMaterials

• Carbon Steel
• Copper
• Cupro-Nickel
• Stainless Steel

CasingMaterials

• Galvanized Steel
• Stainless Steel
