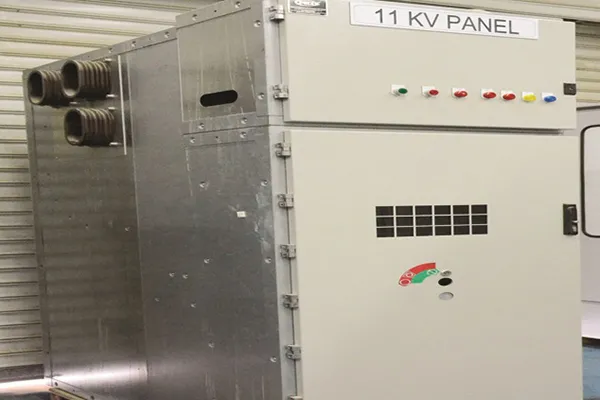

11 KV Switchboards
Medium Voltage 11kV 5MVAR Capacitor Bank Panels
Rating
Up to 5MVAR, 25 kA / 3 secs Fault Level, 5 steps IEC 62271-100, 200
Incomer
1250 Amps Isolator
Banks
Each stage 1 MVAR Capacitor bank
Protection and Metering
"Each bank protected with HRC fuses and Earth fault relays Metering as per customer request."
Enclosure
"Electro galvanized, sheet steel power coated enclosure conforming to different IP ratings. FRP Weather proof Enclosures to different IP 55 and 65."
Electro galvanized sheet steel power coated enclosure conforming up to IP55 ratings.
Construction
Out door style construction with sun canopy.
Bus Bars
Sleeved with Raychem color coded, fire retardant insulation sleeves 99.9% pure, High conductivity, electrolytically tinned Copper Bus Bars.
