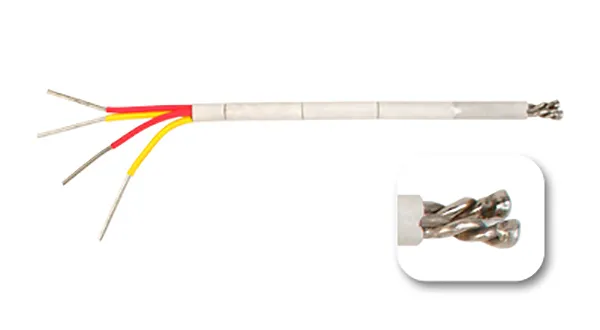

Industrial Base Metal Thermocouples

Industrial Base Metal Thermocouples

Our Industrial Base Metal Thermocouples offer a wide variety of ceramic insulated thermocouples in a large selection of wire sizes. All standard thermocouples (types E, J, K & T) come with a standard length of 12 inch leads. Noble metal and refractory wire elements (types B, C, D, R & S) come with a standard element length of six inches. Other sizes and/or lengths are available upon request.

Mullite ceramic insulators are recommended for use with base metal thermocouple wire and elements types E, J, K, N & T. High purity Alumina oxide is recommended for use with noble or refractory thermocouple wire and elements, types B, C, D, R & S. Alumina is suitable for up to 3,600 degrees Fahrenheit. Mullite (60% AL 2 O 3 / 39% SiO 2 ) is suitable to 2,700 degrees Fahrenheit.

NOTES:

• Length do not include approximately one inch of bare wire at the terminating end.
• These units are also available with short ball and socket insulators for units required to bend, curve, etc.
• Contact factory with your specific requirements. Typically a sketch +s required to quote these unique designs.
• When ordering, specify series (A14A) and Part No. by specifying each of the four characteristics from columns A- B-C-D. Example. A14A-2-14-K-24 (specifies a duplex 14 gage, type K, 24 inch long element)
• All units come standard with a twist and welded junction. If you request no twist, specify by adding the suffix NI Example. A14A-2-14-K-24-NT
