PCB Assembly

PCB Assembly

Murrietta Circuits specializes in low to mid-volume, complex assembly builds. With our quick-turn prototype offerings, our team will ensure that your assemblies are on-time with exceptional quality. Murrietta ensures quality throughout our PCB Assembly operations by performing 100% kit audits, BOM scrubbing, CAM programming, and data comparisons.

PCBA Testing is a crucial part of the PCB assembly process. Murrietta Circuits offers a full range of PCB testing services, from board level functional testing to full environmental screening. We save our customers valuable time and money by avoiding unnecessary revision spins thanks to our knowledgeable staff, extensive DFM and quality data checks.

PCB Assembly Services

• Full Turnkey Assembly Services
• Consigned PCB Assembly
• High-Mix, Low-to-Medium Volume Production
• Package sizes down to 01005
• Fine Pitch Down to 0.1mm
• Quick-Turn Prototypes
• BGA X-Ray & Rework
• Box Build Assemblies
• Cable Assembly and Testing
• Conformal Coating
• Flying Probe Test / ICT Test
• Functional Testing
• Environmental Testing
• Boundary-scan Programming & Testing
• Component Re-Tinning
• Tin Whisker Mitigation, Lead-Free Solder Joint Weakness Prevention, Refinishing with Tin/Lead & Lead-Free, Restoration of Solderability, Gold Removal per J-STD- 001)
• BGA Reballing (Conversion to Tin-Lead, Conversion to RoHS Compliance)
• Full Traceability on Component Level (Record of Assembly)
• IPC-610 Class II & III
• J-STD-001 / Space Addendum

Key Equipment

• Nordson Yes-Tech FX-940 Ultra 3D AOI system
• Quadra 5 3-D X-Ray

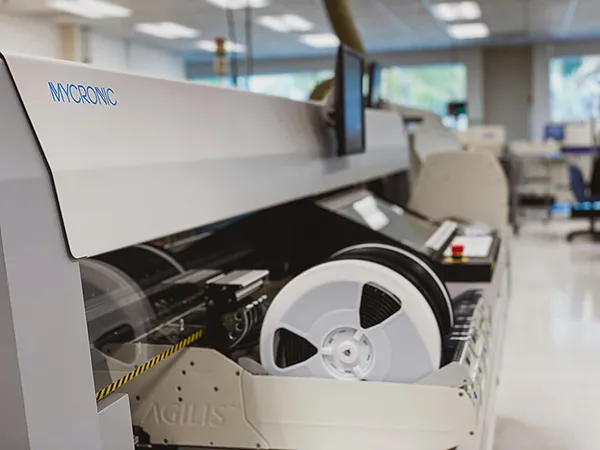

• Mycronic MY300 SX-15 Pick & Place Machine
• Aegis Full Traceability Paperless System
• Acculogic Flying Scorpion FLS980Dxi
