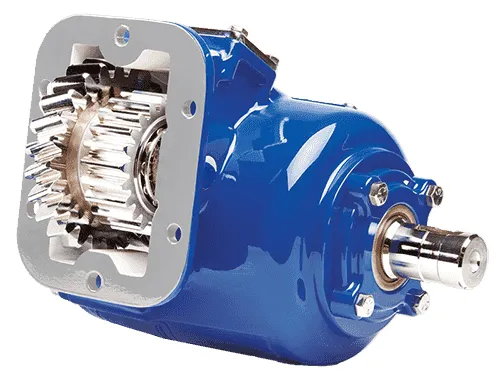

CS6 POWER TAKE-OFF

CS6 POWER TAKE-OFF

The CS6 Series are clutch shift PTOs designed to work well on Allison and Aisin automatics, and many current manual transmissions. Like all of Muncie Power's clutch shift line of PTOs, the CS6 Series offers popular direct mount pump options as well as Muncie Power's patented shaft brake as a standard feature. An upgraded multi-disk clutch brake can be used where absolute shaft stoppage is required.

KEY FEATURES AND BENEFITS

• 6-bolt clutch shift PTO with patented drag break
• 19 transmission input gears: Fits most popular automatic and manual transmissions
• Three remote mount output shafts in keyed and flange types: Versatility for remote pump drives
• S.A.E. "A", "B", and "BB"; DIN 5462 direct mount pump options: Fits most popular pumps
• Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
• Patented Muncie drag brake: Prevents shaft rotation in "OFF" mode
• Optional pulse generator: Lets System Protection Device monitor PTO shaft speed
