Standard Performance EMC Filter Range

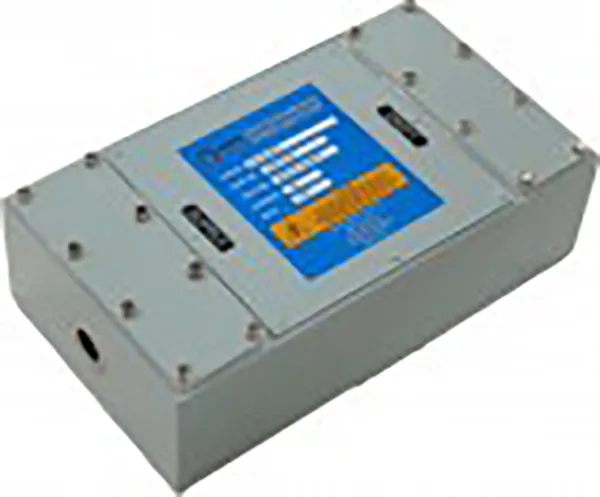

Standard Performance EMC Filter Range

Standard Performance EMI filters for electrical connection to SP&N and TP&N mains distribution systems. The filters offer attenuation against electromagnetic noise present on the power lines between the ranges of 100kHz to 18GHz to 100dB. The supply should have a balanced return current and the case needs a solid low impedance connection to earth potential.

Insertion Loss Performance

Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17.Performance curve meets 100dB attenuation from 100kHz to 18GHz.
