Motor Protection Electronics, Inc.

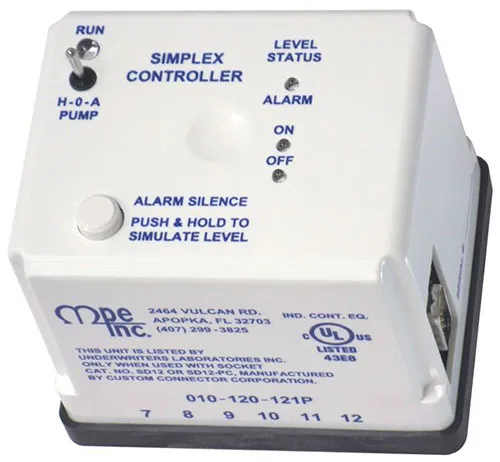

Simplexer Controller

The Simplexer Controller (010-120-121P) is a plug-in controller for single pump control operation. The controller’s inputs shall be designed to accept either float switches or a conductance level probe input. The Simplexer Controller shall be UL508 Listed, SCADA ready, with modbus protocol, and be able to perform either pump-up or pump down control.

Features

The Controller shall be designed to simplify control panel construction by incorporating the following features:

• Three Float and/or Conductance Probe Inputs

• Level Simulation Pushbutton

• HOA Switch

• Pump Call and High Level Alarm Relays

• Surge Protected Level Inputs

• 10 Second Power Up Delay

• Power On Indicator

• Input Level Indicators

• Pump Run Indicator

• High-Level Alarm Indicator

• Latched High-Level Alarm Indicator
