MORO SRL

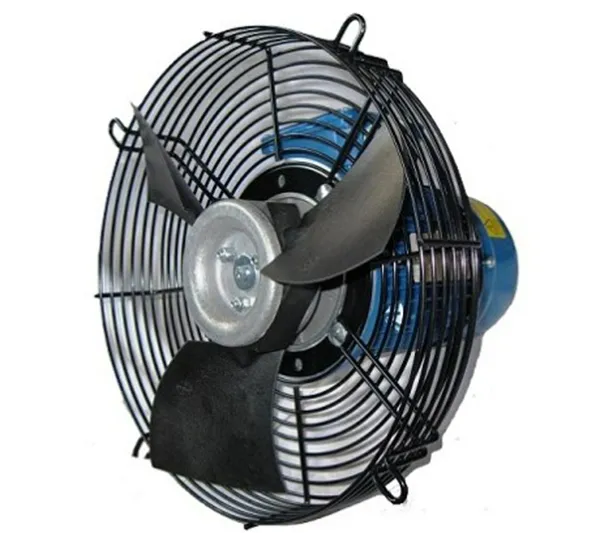

AXIAL FANS WITH MOTOR SUPPORT GRID RT SERIES

Characteristics

These fans are suitable where it is necessary to remove heat, replacement of stale air or slightly dusty. They are in esecution 5 with motor mounted on grid in carbon steel with epoxy painted and protection in according to UNI EN ISO 12499, impeller hub in die-cast aluminum and glass reinforced polypropylene blades.

Construction specifications

Working temperature -10°C + 40°CSingle-phase or three-phase motorVoltage eurovoltageFrequency 50-60 HZDirect driveProtection IP55Balancing according to UNI 1940Diameter 250 mm – 600 mm

Special executions

BladesALL (Aluminium) for temperature from -60°C to +250°CNYV (Nylon glass) for temperature from -40°C to +120°CPAGAS (Antistatic NYV) for temperature from -40°C to +110°CGridPlain and tapered shape, reinforced structure, diameters up to 900 mm.Other: sizing differents, voltages and frequencies, double pole motors, reversible airflow.
