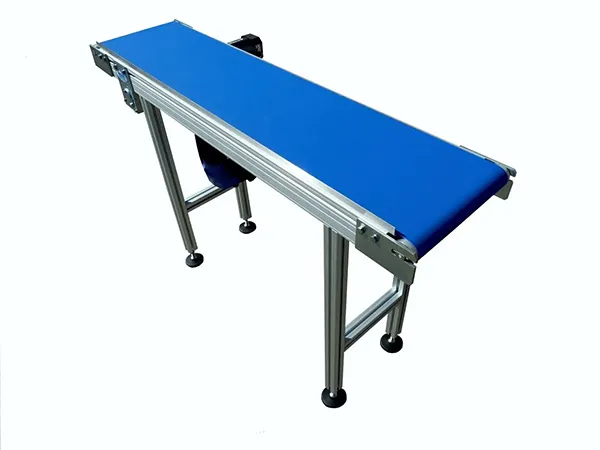

MT1950 Medium Duty Belt Conveyor

MT1950 Medium Duty Belt Conveyor

Our high-quality precision belt conveyors will give years of trouble-free use.  The MT1950 offers safe, low noise operation and has T-slots on both sides for installing guide rails, sensors, and brackets.  There is also a choice of different drive units and controls.

• Robust anodised aluminium extruded frame
• Hard-wearing stainless-steel bed plate
• High quality conveyor belt material
• Precision machined anodised aluminium rollers with SKF bearings
• Easy single tool tracking adjustment with nylon anti-vibration thread lock
• Selection of drive types and positions
• Standard width stocked parts for faster build options
• Low maintenance design
• Fixed or variable speed control
• 2-Year mechanical warranty
• 5-Year Stainless Steel Bed Plate warranty
• CE / UKCA Marked
• Lengths: 1 to 5m
• Medium Duty Belt Widths: 100mm, 200mm, 300mm, 400mm & 500mm (plus special widths)
• Speed Ranges: 0.13 to 18m/min
• Drive Roller Diameters: 50mm and 63mm
• Idler roller diameter: 50mm
• Fixed side guides: 20mm / 40mm / Special heights
• Adjustable side guides – optional
