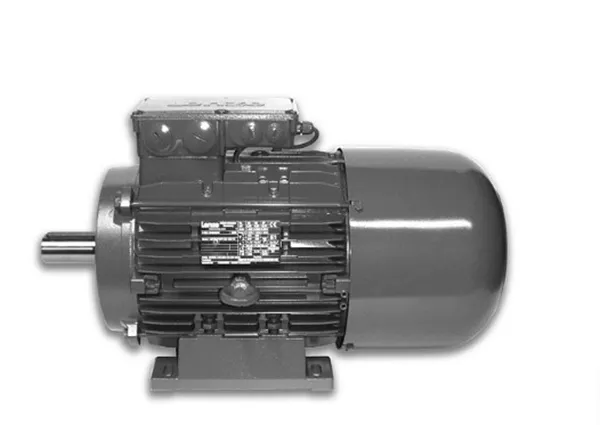

Midland Dynamo AC Brake Motors

An extremely compact combination

The Midland Dynamo AC Brake Motor is an extremely compact combination of an electro-magnetic disc brake and a standard British Totally Enclosed Fan Cooled Motor.

The Brake, of single disc 'Fail to Safety' design, is mounted at the non-driving end of the motor between the cooling fan and the motor endshield and is completely protected by the fan cowl. This arrangement completely maintains the full rated output of the motor and assists in dissipating the heat resulting from the braking operations. For normal applications the brake is adequately protected; extra protective features are available when the unit is required to operate in damp, corrosive, metallic or dirt laden atmospheres. Full details are available from the Sales Office.
