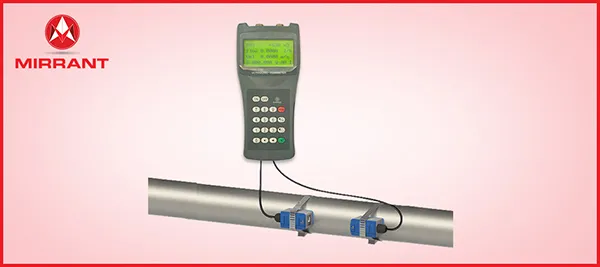

Ultrasonic flow meter

Ultrasonic flow meter

Ultrasonic flow meter

The working principle of a Ultrasonic flow meter is based on the transit-time Technology.The ultrasonic flow meter utilizes two ultrasonic transducers that function as both ultrasonictransmitter and receiver. The ultrasonic flow meter operates by alternately transmitting and receiving a burst of ultrasound between the two transducers by measuring the transit time that it takes for sound to travel between the two transducers in both directions. The difference in the transit time t measured is directly proportional to the velocity ( V) of the liquid in the pipe. With no flow, the transit time will be equal in both directions. With flow ultrasound willtravel faster in direction of flow &slower against the flow. The liquid velocity

  • (V) inside the pipe can be related to the difference in time of flight through the following equation
  • V = K x Dx t
  • Where V: Velocity of the Liquid
  • K: Constant
  • D: Distance between the two transducers
  • t: Difference in transmit time

SPECIFICATION

Medium

Domestic water, industrial water, raw water, ground water, sewage with small particle content, Oils, Chemicals Alcohol, acids, Beverage, Liquid food.,etc

Diameter

DN15~DN6000mm

Accuracy

±1%

Repeatability

±0.2% of Span

Medium temperature

<60’C

Flow rate

0.3~32m/s

Pipe Material

steel, cast iron, Ductile iron,Brass,copper,,PVC, Aluminium

Displays

4x16 English letters

Electronic Enclosure Material

Plastic, Aluminium

Power supply

230VAC/110VAC/24VDC/Battery

Signal output

4~20mA, Pulse

Communication

RS-232C,RS485,M-BUS,RF,GSM/GPRS,LORA/NB-IOT

Data Logger

Options : SD card data ( up to 8GB based SD card capacity)

Protection proof

IP65; IP67,IP68

Explosion-proof

Flame Proof (FLP)

Structure

Integral, Remote

Liquid temperature

-40 to 121 Deg.C. (Optional 40 to 250 Deg.C.)

Work environment

Ambient temperature:-20~+60H,Ambient humidity:5%~90%

Sensors for Clamp-on Type

S1 (15-100 mm), M1(50-700 mm) and L1(300- 4570 mm).

Sensors for Insertion Type

Above 80mm

Sensors for Inline Type

DN15~DN600mm

Types of UltaFlow 2500

Clamp-on, Insertion, Inline.
