Mold Temperature Controller (MT Series)

Mold Temperature Controller (MT Series)

Mold temperature controller (MT Series) major functions include PID close-loop control, proportional control, Auto-tuning temperature control, self-diagnosis, and self-protect temperature control. Up to 48 temperature ranges can be set or accessed through serial Modbus communication.

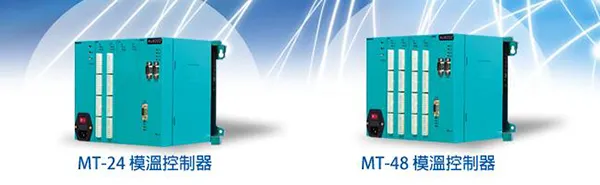

MT-24 Mold Temperature Controller MT-48 Mold Temperature Controller
 Temperature range options: 22+2  Temperature range options: 44+4
 Temperature sensor types: J and K Type  Temperature sensor types: J and K Type
 Communication: Modbus-RS232  Communication: Modbus-RS232
 Baud rate: 9600-38400 bps  Baud rate: 9600~38400bps
 PWM temperature control period: 1-30 seconds  PWM temperature control period: 1-30 seconds
 Temperature sensing range: 0-600 °C  Temperature sensing range: 0-600 °C
